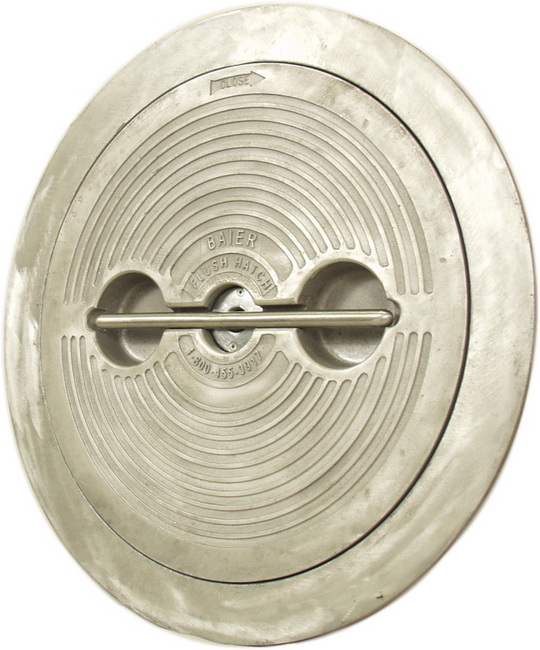

- Cast Hatch Cover (unique no grab handles)
- Stainless Steel Centerbolt and hardware
- Built-in Stainless Steel T-Handle used for quick engagement as well as lifting
- Turning wheel optional
- Cast Strongback
- Cast / fabricated matching Deck Ring
- Neoprene Cover Gasket and Washers (Buna-N optional)
- Every unit shipped with an underside escape turning bar for safety
STRENGTH, SIMPLICITY and CONVENIENCE
The T-Handle Strongback system has only three moving parts to secure the hatch cover to the deck. Like the Classic HEX it is simple, strong, reliably watertight, infinitely adjustable from topside, and easily serviced (parts are readily available and replaced in the field).
The T-Handle Strongback hatch cover product line is available only in cast aluminum. The deck rings used are the same as the Classic HEX and are available in galvanized mild steel (for welding into steel decks), or cast aluminum (for welding into aluminum decks or bolting to fiberglass or wood decks). Stainless deck rings are available by special order.
The design is especially popular on aluminum boats, fishing and other workboats, as well as many U.S. Navy and U.S. and Canadian Coast Guard vessels.
Optional spoked or un-spoked handwheels are available. Request the handwheel option from a Baier™ sales representative or Baier™ distributor at the time of purchase.
Are you Looking for a coaming to go with this hatch? Please visit our Coamings Section for more information.
Cover Material: cast aluminum only
Ring Material: cast aluminum, galvanized steel, or stainless steel.

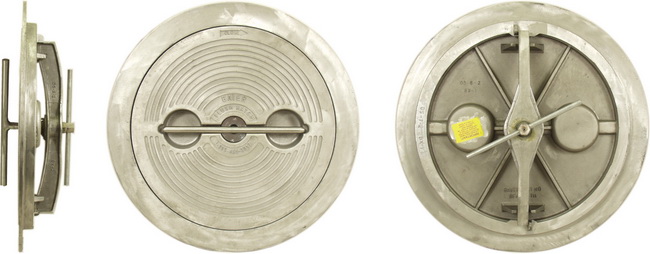

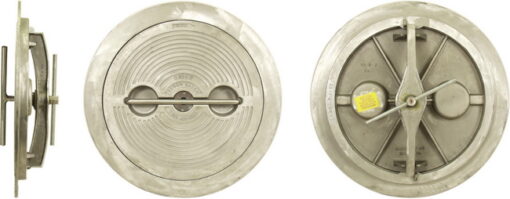

BFHRTH20A/A with Cast Aluminum Deck Ring

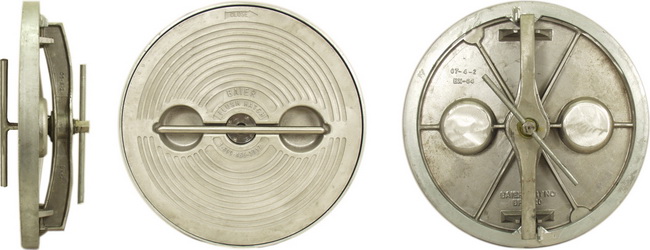

BFHRTH20A/S with Galvanized Steel Deck Ring
|Model Number||Material – Hatch / Deck Ring||Downloads||Clear Opening In. (mm)||Cover Size||Cutout Dimension in. (mm)||Weight (Cover)||Weight (Deck Ring)|
|BFHRTH20A||Aluminum Cover Only||Spare Parts Files:
|BFHRTH20A/A||Aluminum / Aluminum||Cutout & CAD Files:
|BFHRTH20A/S||Aluminum / Steel||Cutout & CAD Files:
|BFHRTH20A/SS||Aluminum / Stainless Steel||Cutout & CAD Files:
