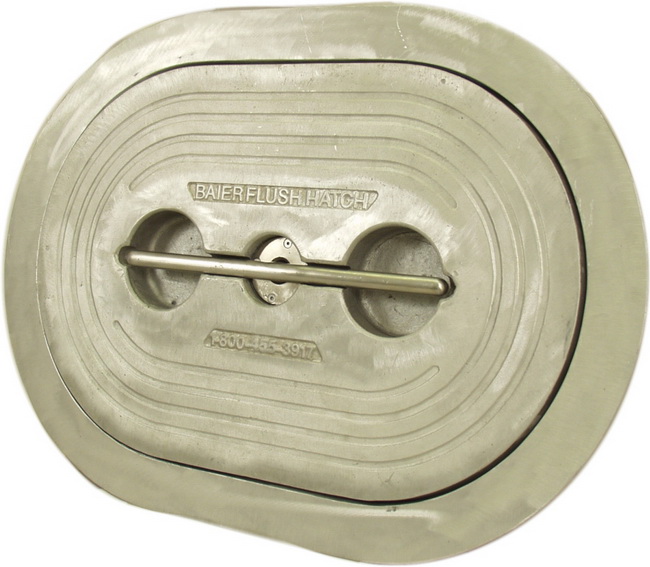

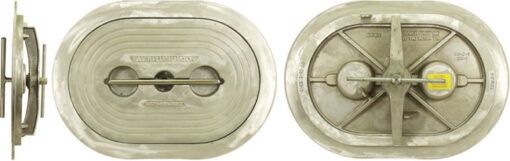

Flush Hatch | Pull-up T-Handle | Oval 15″ X 24″| Aluminum

Flush Hatch | Pull-up T-Handle | Oval 15″ X 24″| Aluminum

FEATURES
Unique:

    • Cast Hatch Cover (unique no grab handles)
    • Stainless Steel Centerbolt and hardware
    • Built-in Stainless Steel T-Handle used for quick engagement as well as lifting
    • Turning wheel optional
    • Cast Strongback
    • Cast / fabricated matching Deck Ring
    • Neoprene Cover Gasket and Washers (Buna-N optional)
    • Every unit shipped with an underside escape turning bar for safety

Certification

This hatch is ABS Certified for use on ABS classed vessels or facilities by the American Bureau of shipping on ABS Certificate Number: 21-46530-PDA.

Description
STRENGTH, SIMPLICITY and CONVENIENCE
The T-Handle Strongback system has only three moving parts to secure the hatch cover to the deck. Like the Classic HEX it is simple, strong, reliably watertight, infinitely adjustable from topside, and easily serviced (parts are readily available and replaced in the field).
Key Features
The T-Handle Strongback hatch cover product line is available only in cast aluminum. The deck rings used are the same as the Classic HEX and are available in galvanized mild steel (for welding into steel decks), or cast aluminum (for welding into aluminum decks or bolting to fiberglass or wood decks). Stainless deck rings are available by special order.
Application
The design is especially popular on aluminum boats, fishing and other workboats, as well as many U.S. Navy and U.S. and Canadian Coast Guard vessels.

Notes
Optional spoked or un-spoked handwheels are available. Request the handwheel option from a Baier™ sales representative or Baier™ distributor at the time of purchase.

Are you Looking for a coaming to go with this hatch? Please visit our Coamings Section for more information.

Material
Cover Material: cast aluminum only
Ring Material: cast aluminum, galvanized steel, or stainless steel.

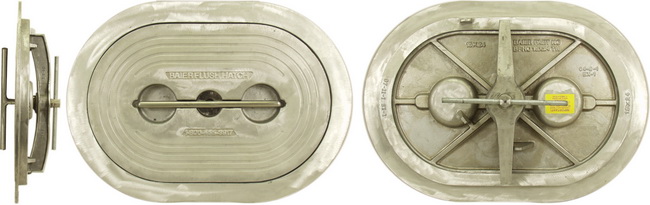

BFHOTH15X24A/A with Cast Aluminum Deck Ring

BFHOTH15X24A/S with Galvanized Steel Deck Ring

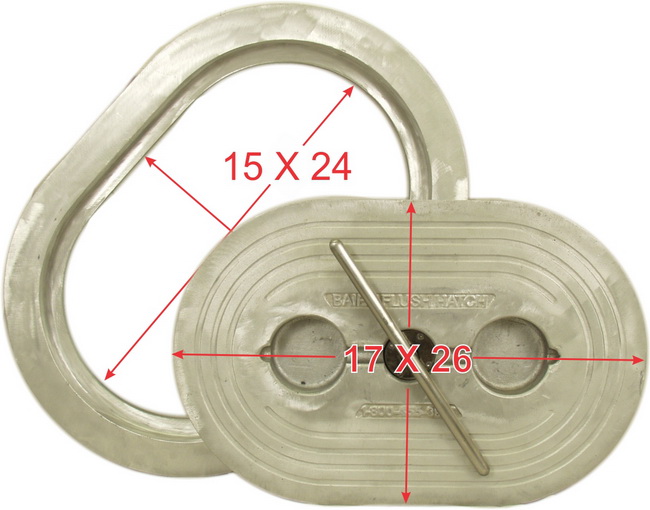

Model Number Material – Hatch / Deck Ring Downloads Clear Opening In. (mm) Cover Size Cutout Dimension in. (mm) Weight (Cover) Weight (Deck Ring)
BFHOTH15X24A Aluminum Cover Only Spare Parts Files:
PDF
NA 17 X 26
BFHOTH15X24A/A Aluminum / Aluminum Cutout & CAD Files:
PDFDXF
15 X 24 17 X 26 18.5″ X 27.5″ – 2X R9.25″

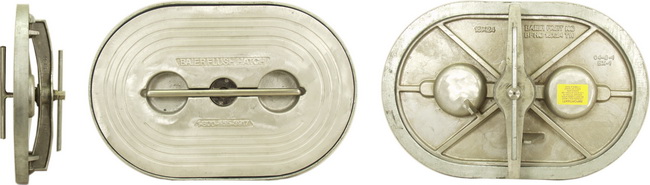

BFHOTH15X24A/S Aluminum / Steel Cutout & CAD Files:
PDFDXF
15 X 24 17 X 26 18″ X 27″ – 2X R9″
BFHOTH15X24A/SS Aluminum / Stainless Steel Cutout & CAD Files:
PDFDXF
15 X 24 17 X 26 18″ X 27″ – 2X R9″

Disclaimer of Liability: PDF Cutout drawings and Autocad® Cutout drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.

We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.

This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.

For a complete list of all available Baier Products formatted in PDF and DXF, go to our Download Library.
