- Low cost – high strength cast steel construction
- Cast Steel and Stainless Steel Dog handles (available with grease zerks optional)
- Bronze tumble bolts for corrosion resistance and trouble free operation
- Bolts and nuts made from dissimilar metals to prevent galling and corrosion

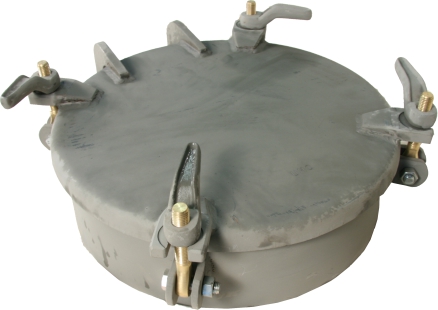

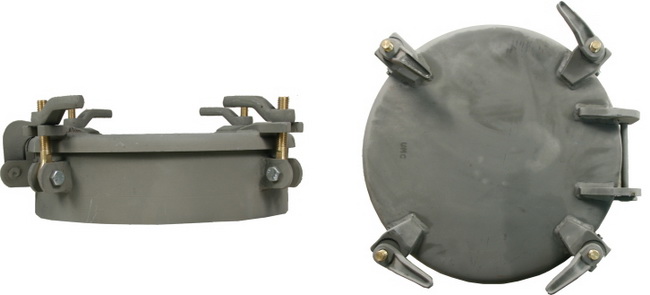

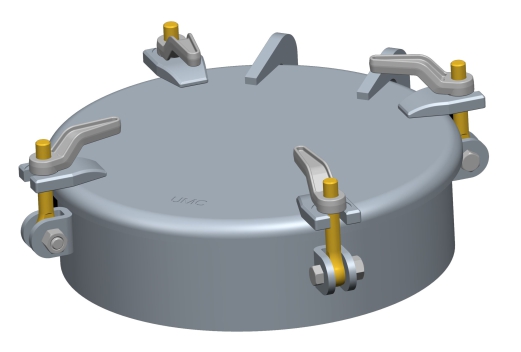

Multi-Dog Raised hatches are a strong and secure working enclosure system. They are universally used hardware on all kinds of commercial vessels from small workboats to ocean going cargo ships. Their simple design and quality steel construction help them meet the long range trouble free service requirements in the harshest environments.
HARDWARE:
Tumble Bolt – Bronze
Dog Handle – Steel
Bolt 5/8-11 – Zinc Plated Steel
Nut 5/8-11 – Stainless Steel
Gasket – Nitrile Rubber
HATCH MATERIAL:
Steel (ASTM A36)
Painted Primer Grey
UMC-456-5 Steel Hatch 4-Dog
| Model Number | Description | Part Number | Clear Opening In. (mm) | Weight Total Lbs (Kgs.) | Downloads |
|---|---|---|---|---|---|

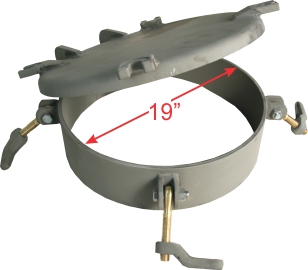

| UMC-343-5 | Raised 4 Dog 19″ Round Watertight Hatch | 01230-101A | 19″ (483) |
92 (42) |
|
| UMC-456-5 | Raised 3 Dog 12″ Round Watertight Hatch |
03410-101A | 12″ (305) |
52 (24) |
