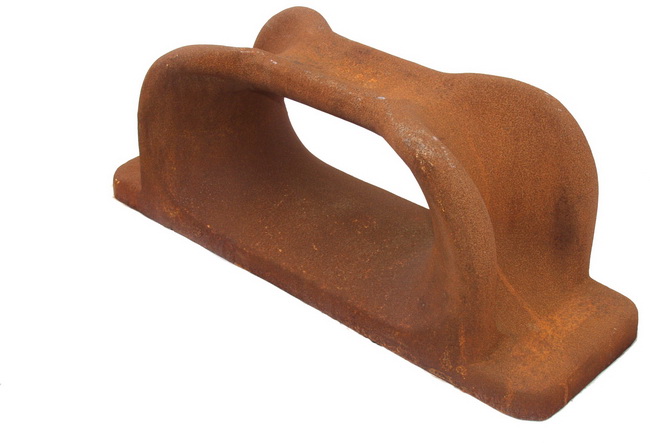

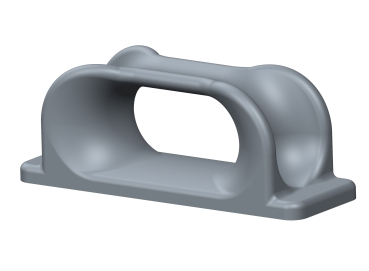

Universal Closed Chocks.
ASTM A27-70-36 Cast Steel
UMC-480: Closed Chock 9″ – 04610-301A
UMC-490: Closed Chock 12″ – 06240-301A
UMC-14: Closed Chock 14″ – 06241-301A
| Model Number | Description | Downloads | Part Number | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|
| UMC-480 | 9″ Closed Chock | Cutout & CAD Files: PDFDXF  |
04610-301A | 176 (80) |
| UMC-490 | 12″ Closed Chock | Cutout & CAD Files: PDFDXF |
06240-301A | 455 (206) |
| UMC-14 | 14″ Closed Chock | Cutout & CAD Files: PDFDXF |
06241-301A | 725 (329) |
Disclaimer of Liability: PDF Cutout drawings, Autocad® Cutout drawings and SSI drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.
We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.
This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.
SSI files are digital models of Baier Equipment formatted for SSI™s popular ShipConstructor CAD/CAM software (XML files are compatible with ShipConstructor version 2016 R2 and greater). For a complete list of all available Baier Products formatted for SSI ShipConstructor go to our Download Library. For more information about SSI ShipConstructor Contact your local SSI Reseller to discuss the most cost-effective solution for you. Learn more.
