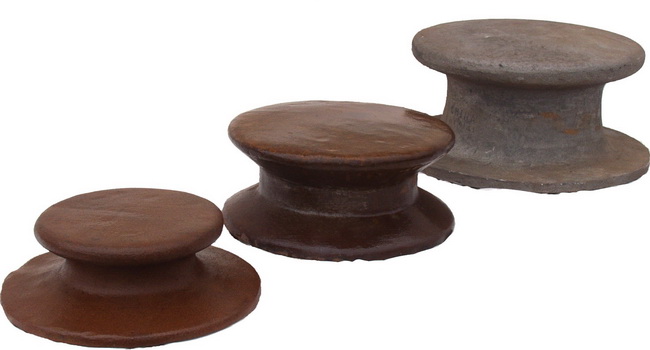

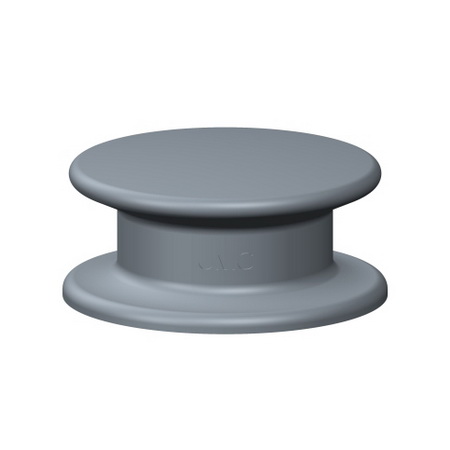

Universal Button Chocks.
ASTM A27-70-36 Cast Steel
UMC-192: Button Chock 6″ – 01160-301A
UMC-473: Button Chock 8″ – 01180-301A
UMC-185: Button Chock 10″ – 01170-301A
|Model Number||Description||Downloads||Part Number||Weight Total Lbs (Kgs.)|
|UMC-192||6″ Button Chock||Cutout & CAD Files:
|UMC-473||8″ Button Chock||01180-301A||75 (34)|
|UMC-185||10″ Button Chock||01170-301A||144 (65)|
