Universal Kevel Chocks.
ASTM A27-70-36 Cast Steel
MODEL DESCRIPTION PART # A LBS
UMC-30 KEVEL CHOCK, 24” 02990-301A 24” 50
UMC-KC30 KEVEL CHOCK, 30” 01081-301A 30” 75

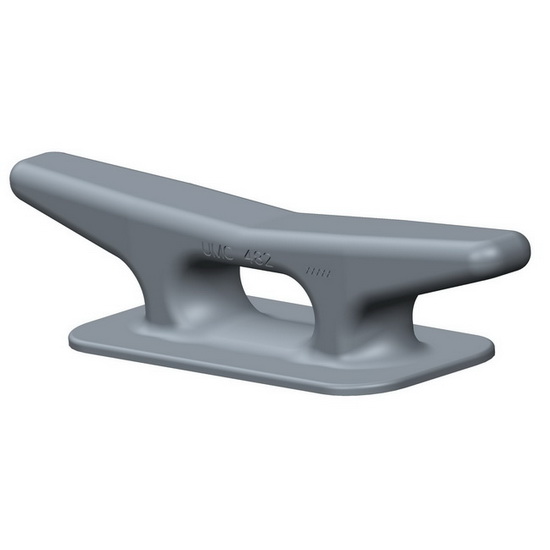

UMC-482 KEVEL CHOCK, 36” 01080-301A 36” 98
UMC-483 KEVEL CHOCK, 42” 01090-301A 42” 168
UMC-484 KEVEL CHOCK, 48” 01100-301A 48” 220
|Model Number||Description||Downloads||Part Number||Weight Total Lbs (Kgs.)|
|UMC-30||24″ Kevel Chock||Cutout & CAD Files:
|UMC-KC30||30” Kevel Chock||01081-301A||75 (34)|
|UMC-482||36” Kevel Chock||Cutout & CAD Files:
|UMC-483||42” Kevel Chock||Cutout & CAD Files:
|UMC-484||48” Kevel Chock||Cutout & CAD Files:
