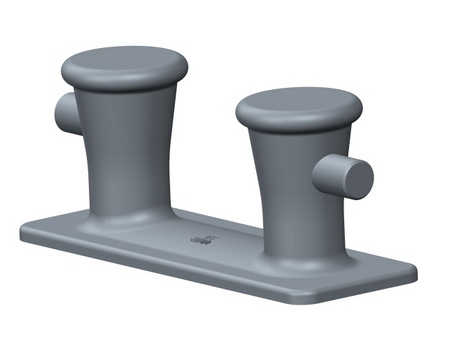

Universal Double Bitts.
ASTM A27-70-36 Cast Steel
UMC-2: Double Bitt 8″ – 01110-301A
UMC-2A: Double Bitt 8″ with Horns – 04200-301A

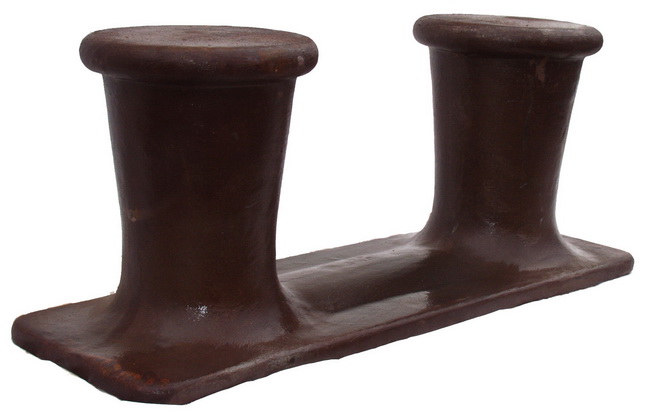

UMC-40: Double Bitt 10″ – 01120-301A
UMC-40A: Double Bitt 10″ with Horns – 03760-301A
| Model Number | Description | Downloads | Part Number | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|
| UMC-2 | 8″ Double Bitt | 01110-301A | 320 (145) |
|
| UMC-2A | 8″ Double Bitt w/ Horns | 04200-301A | 331 (150) |
|
| UMC-40 | 10″ Double Bitt | 01120-301A | 574 (260) |
|
| UMC-40A | 10″ Double Bitt w/ Horns | 03760-301A | 579 (262) |
