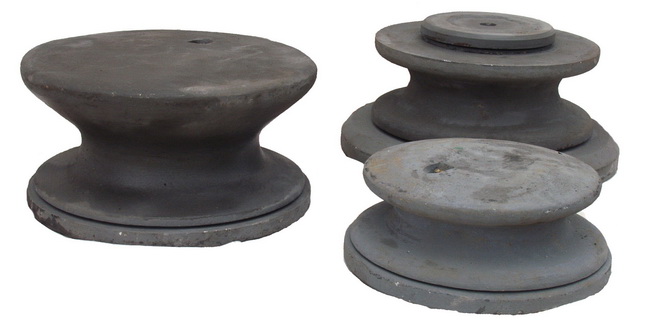

Universal Roller Button.
ASTM A27-70-36 Cast Steel

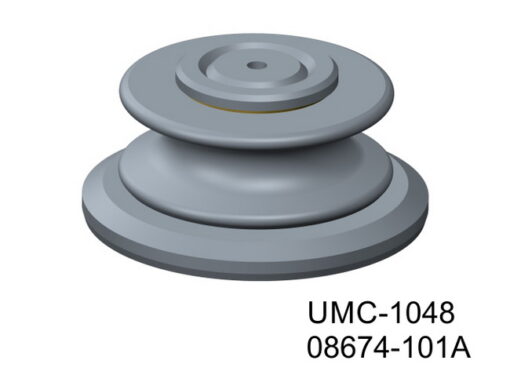

UMC-1048: Roller Button – 08674-101A
|Model Number||Description||Downloads||Part Number||Weight Total Lbs (Kgs.)|
|UMC-1048||13.5″ Roller Button||08674-101A||250 (113)|
