Weathertight Door – Quick Acting Style

Weathertight Door – Quick Acting Style

SKU: UMC-WTD-QA Category:
PDF Downloads

Description
Quick Acting Weathertight doors are perfect for quick and easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and built to ABS and Lloyd’s Specifications. These doors feature 6 dogs and are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.
Feature Description
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-hand doors will have the hinges on the right from this perspective. Conversely, a left-hand door will have the hinges on the left.

When Ordering Please Specify:
Clear Opening – 26″ x 60″ / 30″ x 60″ / 30″ x 66″ / 30″ x 72″
Opening Orientation – Left Hand Door / Right Hand Door

Application
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Material
Steel (ASTM A36)
Painted Primer Grey

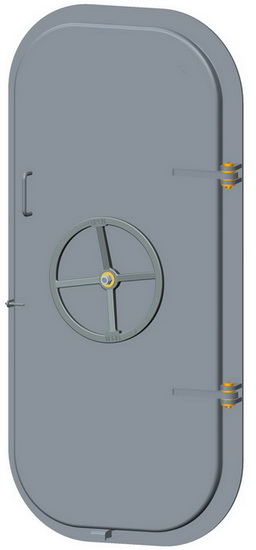

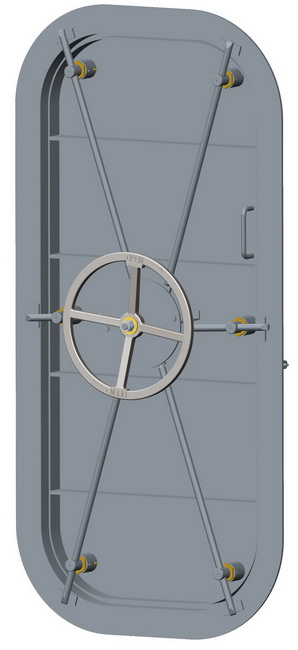

UMC-WTD-QA-26×60-R (Back)

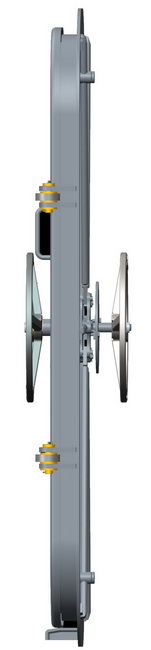

UMC-WTD-QA-26×60-R (Side)
Model Number Description Part Number Handeling Clear Opening In. (mm) Downloads Weight Total Lbs (Kgs.)
UMC-WTD-QA-26×60-R 26″ x 60″ Opening / Right Handed 06122-101C RH 26″ x 60″ (660 x 1524) Cutout & CAD Files:
PDFDXF
320 (145)
UMC-WTD-QA-26×60-L 26″ x 60″ Opening / Left Handed 06122-101D LH 26″ x 60″ (660 x 1524) Cutout & CAD Files:
PDFDXF
320 (145)
UMC-WTD-QA-30×60-R 30″ x 60″ Opening / Right Handed 06122-101E RH 30″ x 60″ (762 x 1524) Cutout & CAD Files:
PDFDXF
350 (159)
UMC-WTD-QA-30×60-L 30″ x 60″ Opening / Left Handed 06122-101F LH 30″ x 60″ (762 x 1524) Cutout & CAD Files:
PDFDXF
350 (159)
UMC-WTD-QA-30×66-R 30″ x 66″ Opening / Right Handed 06122-101G RH 30″ x 66″ (762 x 1676) Cutout & CAD Files:
PDFDXF
385 (175)
UMC-WTD-QA-30×66-L 30″ x 66″ Opening / Left Handed 06122-101H LH 30″ x 66″ (762 x 1676) Cutout & CAD Files:
PDFDXF
385 (175)
UMC-WTD-QA-30×72-R 30″ x 72″ Opening / Right Handed 06122-101I RH 30″ x 72″ (762 x 1829) Cutout & CAD Files:
PDFDXF
410 (186)
UMC-WTD-QA-30×72-L 30″ x 72″ Opening / Left Handed 06122-101J LH 30″ x 72″ (762 x 1829) Cutout & CAD Files:
PDFDXF
410 (186)

Disclaimer of Liability: PDF Cutout drawings, Autocad® Cutout drawings and SSI drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.

We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.

This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.

SSI files are digital models of Baier Equipment formatted for SSI™s popular ShipConstructor CAD/CAM software (XML files are compatible with ShipConstructor version 2016 R2 and greater). For a complete list of all available Baier Products formatted for SSI ShipConstructor go to our Download Library. For more information about SSI ShipConstructor Contact your local SSI Reseller to discuss the most cost-effective solution for you. Learn more.
