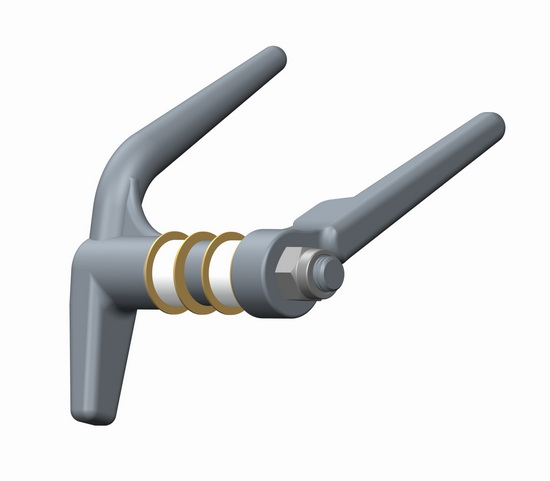

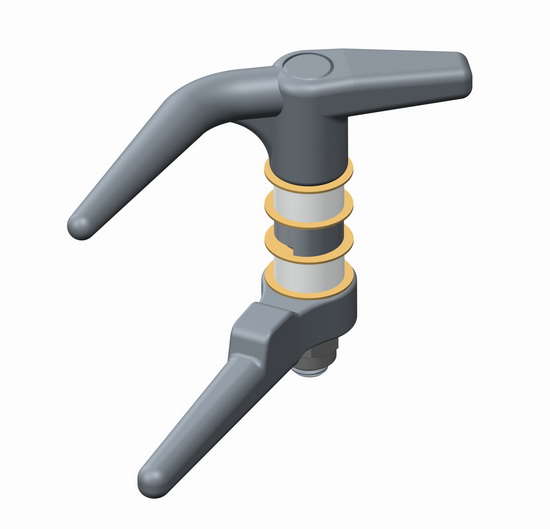

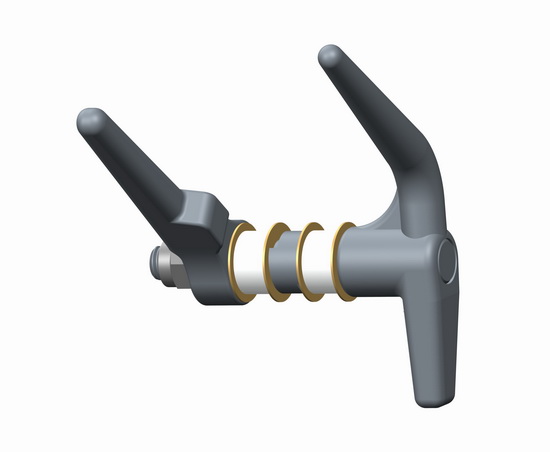

Dog Handle Replacements

Dog Handle Replacements

SKU: UMC-WTD-DOG Category:
Features

    • Cast steel Handles
    • Stainless steel thru shaft
    • Nylon bushings
    • Stainless steel washers
    • Stainless steel hex nut
Description
Door handle replacements are built to provide continuous trouble-free use. They are available in both right and left hand orientation.
Application
UMC’s Door handle replacements are used on our 4-Dog and 6-Dog weathertight doors.

Model Number Part Number Description Handeling Weight Total Lbs (Kgs.)
UMC-WTD-DOG-KIT-R 08340-101A Steel Weathertight Door Dog Kit (RH) RH 6 (2.7)
UMC-WTD-DOG-KIT-LH 08340-101B Steel Weathertight Door Dog Kit (LH) LH 6 (2.7)
