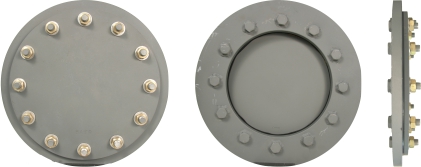

Clean-Out Hatch – Round 10″ Weld Bolt

Clean-Out Hatch – Round 10″ Weld Bolt

Features:

    • High strength carbon steel construction
    • Hardware combinations of dissimilar metal prevent galling and corrosion (Not available on all models – see Manhole Matrix for details)
    • High-quality neoprene rubber gaskets ensure watertight seal (oil restant Buna-N optional)
    • Neoprene gasket material is UV resistant to prevent cracking and memory fatigue
Description
The round manholes are also sometimes referred to as clean-out hatches.

Baier’s complete line of multi-bolt manholes serves as a great inexpensive option for applications where frequent access is not required. Ideal for tank top covers, fuel and water tank access, inspection access to ship voids, barges, sanitary and digester tanks, clean outs and more. These watertight manholes feature simple designs and utilize high strength steel.

Feature Description
All of our manholes meet the ABS (American Bureau of Shipping) requirements for design and materials
Application
Baier offers a complete line of manholes with configurations and hardware combinations to meet your requirements. These industry-standard manholes are used on workboats, and equipment worldwide. Baier’s simply-designed manholes have served the industrial marine and fishing industries for the past 60 years.

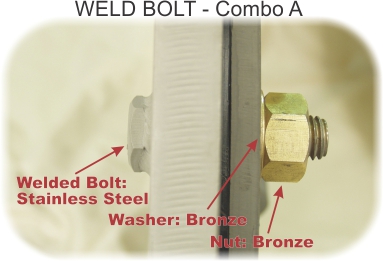

BMHC10U_Detail
Model Number Description Part Number Downloads Clear Opening In. (mm)
08866-110A Clean-Out Hatch – Round 10″ 08866-110A 10
