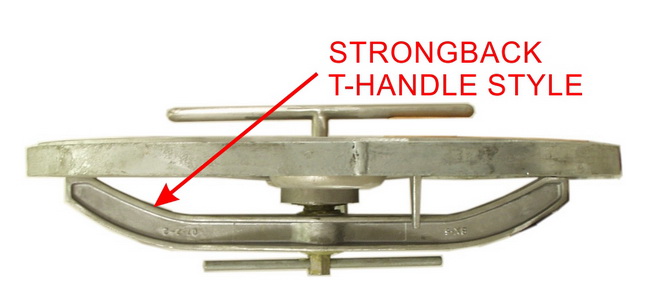

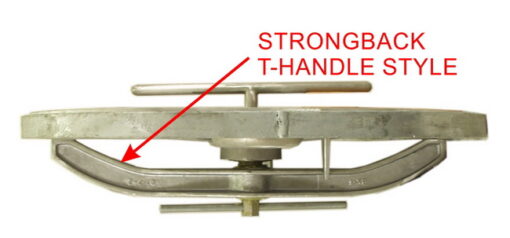

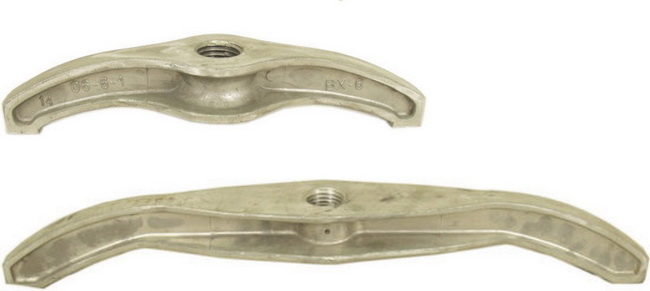

Baier Replacement Strongbacks.
For T-Handle Syle Hatches Only.
The replacement Centerbolt Kits are Offered here:
Replacement Hex Centerbolt Kit
Replacement T-Handle Centerbolt Kit
Not A Replacement Strongback for Hex Centerbolt Style Hatches
Baier Replacement Strongbacks. For Hex Centerbolt Style Hatches Only.
When Ordering Please Specify:
Hatch Size – 14″ Rnd, 16″ Rnd, 18″ Rnd, 20″ Rnd, 22″ Rnd, 24″ Rnd, 15″x24″ Oval
Strongback Material – Cast Aluminum, Cast Steel
| Model Number | Description | Clear Opening In. (mm) | Cover Size | Material – Hatch / Deck Ring |
|---|---|---|---|---|
| BSB8TH-A | Strngbk for 8″ Round T-Handle Hatch | 8″ | Aluminum Cover Only | |
| BSB20TH-A | Strngbk for 20″ Round T-Handle Hatch | 20″ | 22″ | Aluminum Cover Only |
| BSB15X24THA | Strngbk for 15″x24″ T-handle Hatch | 15″ x 24″ | 17″ x 26″ | Aluminum Cover Only |
| BSB24TH-A | Strngbk for 24″x24″ T-Handle Hatch | 24″ x 24″ | 28″ x 28″ | Aluminum Cover Only |
