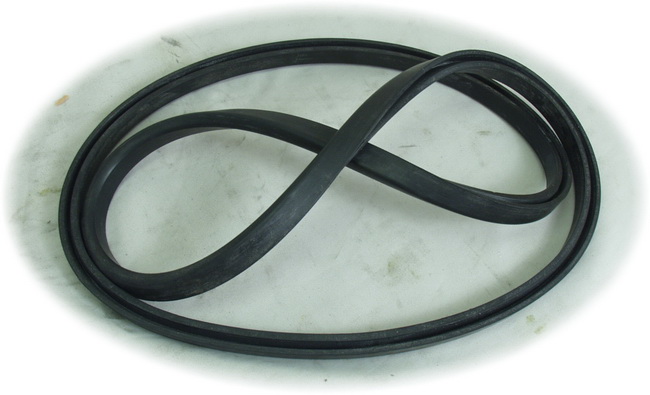

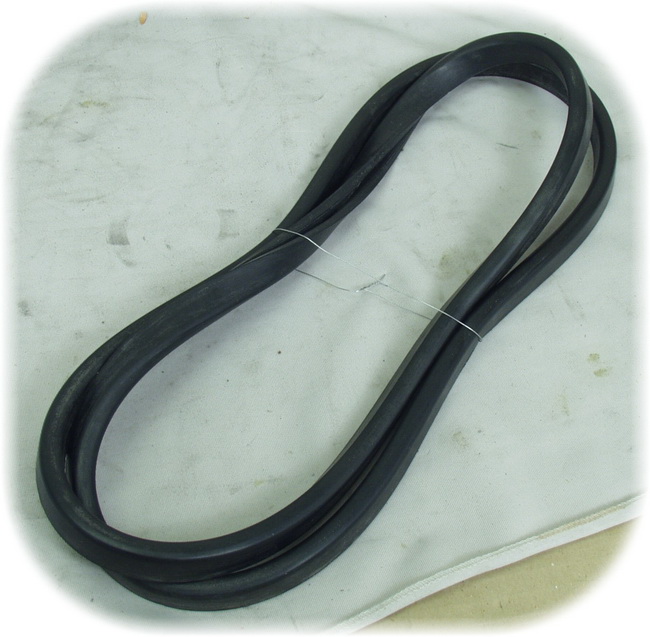

Replacement Gaskets are available for all Baier Hatches. Made of highly resilient neoprene rubber these gaskets will offer years of trouble free, water sealing service.
When Ordering Please Specify:
Hatch Opening Size – 8″, 14″, 16″, 18″, 20″, 24″, 15″x24″, 24″X24″
| Model Number | Description | Clear Opening In. (mm) | Cover Size |
|---|---|---|---|
| 8RND-GAS-BUNA | GASKET, BUNA FOR 8″ ROUND HATCH | 8″ | 10″ |
| 14RND-GAS-BUNA | GASKET, BUNA FOR 14″ ROUND HATCH | 14″ | 16″ |
| 16RND-GAS-BUNA | GASKET, BUNA FOR 16″ ROUND HATCH | 16″ | 18″ |
| 18RND-GAS-BUNA | GASKET, BUNA FOR 18″ ROUND HATCH | 18″ | 20″ |
| 20RND-GAS-BUNA | SEE PN: 15X24-GAS-BUNA – SAME PRODUCT DIAMETER | 20″ | 22″ |
| 22RND-GAS-BUNA | GASKET, BUNA FOR 22″ ROUND HATCH | 22″ | 24″ |
| 24RND-GAS-BUNA | GASKET, BUNA FOR 24″ ROUND HATCH | 24″ | 26″ |
| 15X24-GAS-BUNA | GASKET, BUNA FOR 15X24″ OVAL HATCH | 15″ X 24″ | 17″ X 26″ |
| 24X24-GAS-BUNA | GASKET, BUNA FOR 24X24″ SQUARE HATCH (NOT QA) | 24″ X 24″ | 26″ X 26″ |
| 24x24QA-GAS-BUNA | GASKET, BUNA FOR 24X24″ SQUARE QUICK-ACTING HATCH | 24″ X 24″ | 26″ X 26″ |
