Universal Kevel.
ASTM A27-70-36 Cast Steel
UMC-KC60
| Model Number | Description | Downloads | Part Number | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|

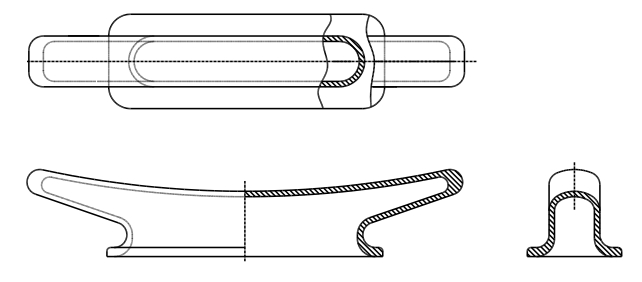

| UMC-KC60 | 60″ Kevel | Cutout & CAD Files: PDFDXF  |
01101-301A | 390 (177) |
