Replacement Centerbolts for use with Hex-Strongback style hatches.
Centerbolt Kit
| Model Number | Description | Weight Total Lbs (Kgs.) |
|---|---|---|

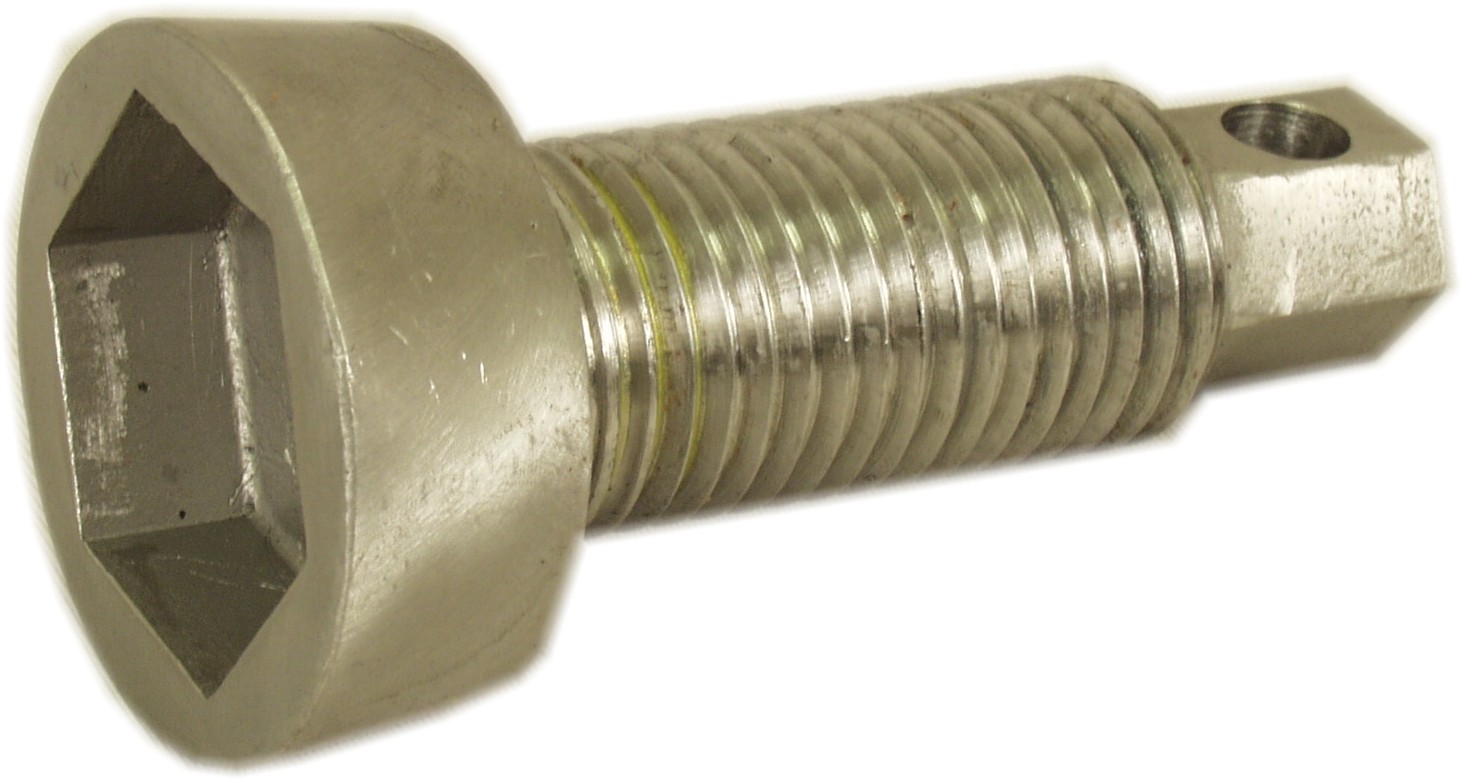

| UP-CB-HEX-SS | CENTERBOLT, STAINLESS STEEL HEX UNVERSAL | |

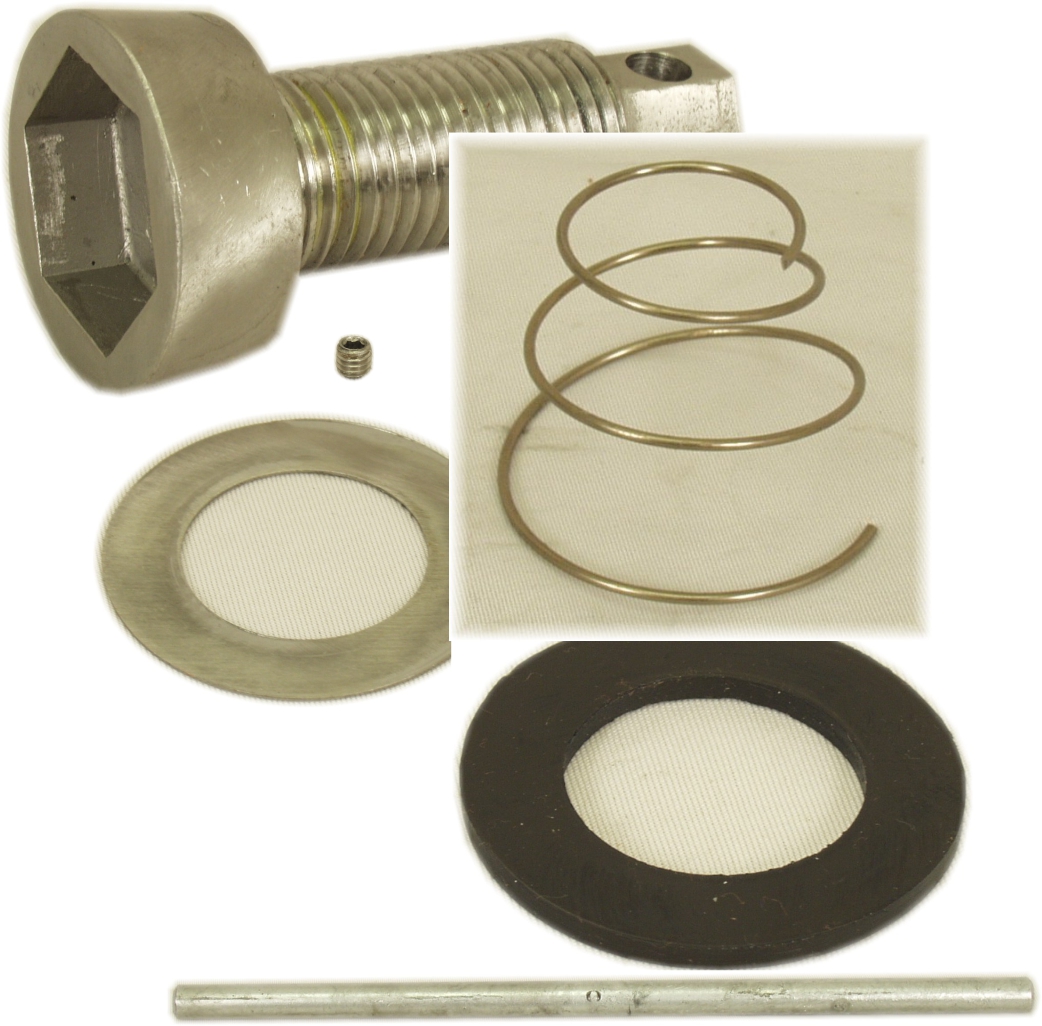

| UP-CB-HEX-SS-KIT | CENTERBOLT KIT, STAINLESS STEEL HEX UNIVERSAL | |
| UP-SPRING-ST | CENTERBOLT SPRING, FOR USE WITH HEX-STRONGBACK HATCH | |
| UP-WASH-NEO | WASHER, BUNA FOR CENTERBOLT | |
| UP-WASH-SS | WASHER, STAINLESS STEEL FOR CENTERBOLT | |
| UP-TURNBAR-GALV | TURNBAR, FOR USE WITH HEX-STRONGBACK CENTERBOLT | |
| UP-SCREW-CB-SS | SET SCREW (SS), USED IN CENTERBOLT TO HOLD TURNBAR |
