Strongback For Hex Centerbolt Style Hatches| Replacement Parts

Strongback For Hex Centerbolt Style Hatches| Replacement Parts

SKU: BSB. Categories: , .
Description

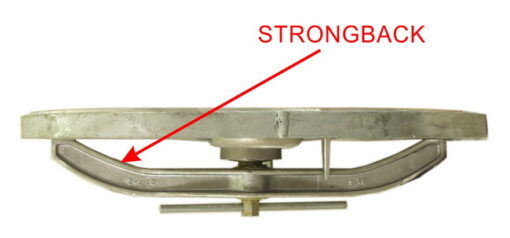

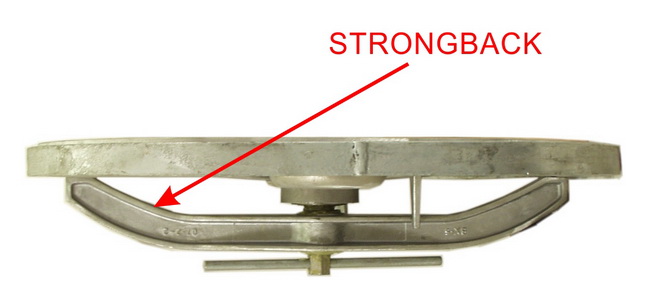

Baier Replacement Strongbacks.
For Hex Centerbolt Syle Hatches Only.
Feature Description
The replacement Centerbolt Kits are Offered here:
Replacement Hex Centerbolt Kit
Replacement T-Handle Centerbolt Kit
Application
Not A Replacement Strongback for T-Handle Style Hatches
Notes

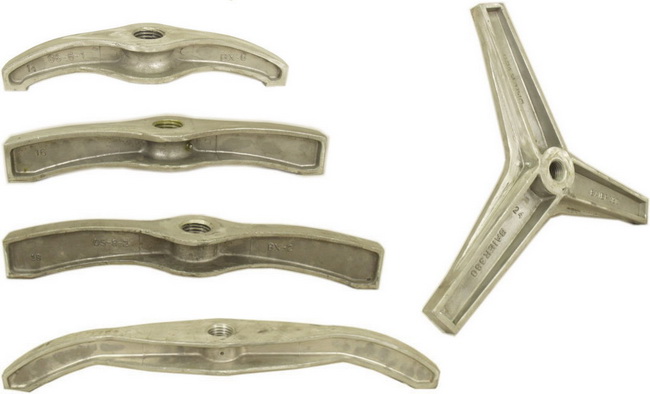

Baier Replacement Strongbacks.
For Hex Centerbolt Style Hatches Only.

When Ordering Please Specify:
Hatch Size – 14″ Rnd, 16″ Rnd, 18″ Rnd, 20″ Rnd, 22″ Rnd, 24″ Rnd, 15″x24″ Oval
Strongback Material – Cast Aluminum, Cast Steel

Model Number Description Clear Opening In. (mm) Cover Size Material – Hatch / Deck Ring
BSB14-A Strngbk for 14″ Rnd Hex Bolt / Cast Aluminum 14″ 16″ Aluminum Cover Only
BSB16-A Strngbk for 16″ Rnd Hex Bolt / Cast Aluminum 16″ 18″ Aluminum Cover Only
BSB16-S Strngbk for 16″ Rnd Hex Bolt / Steel (Galvanized) 16″ 18″ Steel Cover Only
BSB18-A Strngbk for 18″ Rnd Hex Bolt / Cast Aluminum 18″ 20″ Aluminum Cover Only
BSB18-S Strngbk for 18″ Rnd Hex Bolt / Steel (Galvanized) 18″ 20″ Steel Cover Only
BSB20-A Strngbk for 20″ Rnd Hex Bolt / Cast Aluminum 20″ 22″ Aluminum Cover Only
BSB20-S Strngbk for 20″ Rnd Hex Bolt / Steel (Galvanized) 20″ 22″ Steel Cover Only
BSB22-A Strngbk for 22″ Rnd Hex Bolt / Cast Aluminum 22″ 24″ Aluminum Cover Only
BSB22-S Strngbk for 22″ Rnd Hex Bolt / Steel (Galvanized) 22″ 24″ Steel Cover Only
BSB24-A Strngbk for 24″ Rnd Hex Bolt / Cast Aluminum 24″” 28″ Aluminum Cover Only
BSB24-S Strngbk for 24″ Rnd Square Hex Bolt / Steel (Galvanized) 24″ 28″ Steel Cover Only
BSB16-1/2-A Strngbk for 15″x24″ Hex Bolt / Cast Aluminum 15″ x 24″ 17″ x 26″ Aluminum Cover Only
BSB16-1/2-S Strngbk for 15″x24″ Hex Bolt / Steel (Galvanized) 15″ x 24″ 17″ x 26″ Steel Cover Only
