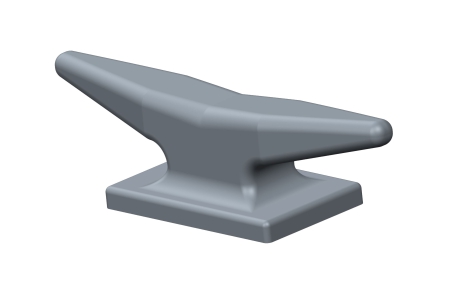

Small Kevel | 12″, 18″ Cast Steel

Small Kevel | 12″, 18″ Cast Steel

SKU: Small Kevel_BAIER. Category: .
Description
Universal Kevel.
ASTM A27-70-36 Cast Steel
Feature Description
UMC-K12B: Kevel 12″ – 08740-301A
UMC-K12A: Kevel 12″ Small Base – 08720-301A
UMC-518: Kevel 18″ – 02720-301A
Model Number Description Downloads Part Number Weight Total Lbs (Kgs.)
UMC-K12B 12″ Kevel Large Base 08740-301A 12 (5.4)
UMC-K12A 12″ Kevel Small Base 08720-301A 7.6 (3.4)
UMC-518 18″ Kevel 02720-301A 34 (15.4)
