Roller Buttons | 11″, 12.5″, 15.5″ | Assemblies

Roller Buttons | 11″, 12.5″, 15.5″ | Assemblies

SKU: Roller Button_BAIER. Category: .
Description
Universal Roller Buttons.
ASTM A27-70-36 Cast Steel
Feature Description

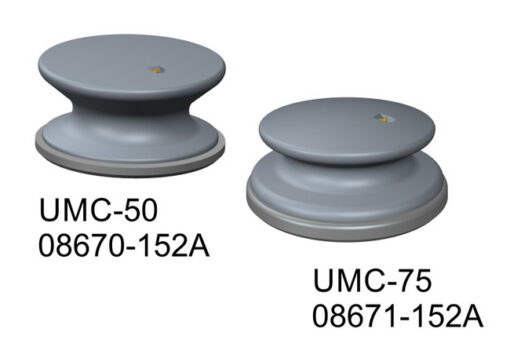

UMC-50: Roller Button 11″ – 08670-152A
UMC-75: Roller Button 12.5″ – 08671-152A
UMC-100: Roller Button 15.5″ – 08672-152A

Model Number Description Part Number Weight Total Lbs (Kgs.) Downloads
UMC-1048 13.5″ Roller Button 08674-101A 250 (113)
UMC-50 11″ Roller Button 08670-152A 100 (45)
UMC-75 12.5″ Roller Button 08671-152A 136 (62)
UMC-100 15″ Roller Button 08672-152A 235 (107)

Disclaimer of Liability: PDF Cutout drawings, Autocad® Cutout drawings and SSI drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.

We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.

This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.

SSI files are digital models of Baier Equipment formatted for SSI™s popular ShipConstructor CAD/CAM software (XML files are compatible with ShipConstructor version 2016 R2 and greater). For a complete list of all available Baier Products formatted for SSI ShipConstructor go to our Download Library. For more information about SSI ShipConstructor Contact your local SSI Reseller to discuss the most cost-effective solution for you. Learn more.
