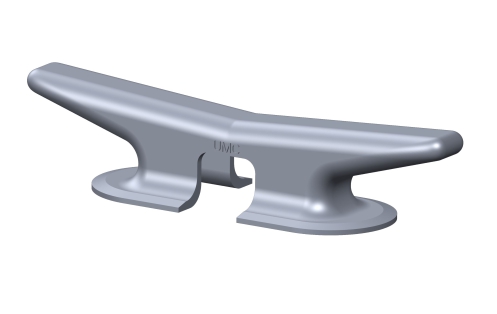

Kevel | 36″, 42″, 48″ Cast Steel

Kevel | 36″, 42″, 48″ Cast Steel

SKU: Large Kevel_BAIER. Category: .
Description
Universal Kevel.
ASTM A27-70-36 Cast Steel
Feature Description
UMC-48A: Kevel 36″ – 01050-301A
UMC-36A: Kevel 42″ – 01060-301A
UMC495A: Kevel 48″ – 01070-301A
Model Number Description Downloads Part Number Weight Total Lbs (Kgs.)
UMC-48A 36″ Kevel 01050-301A 81 (37)
UMC-36A 42″ Kevel 01060-301A 114 (52)
UMC-159A 48″ Kevel 01070-301A 175 (79)

Disclaimer of Liability: PDF Cutout drawings, Autocad® Cutout drawings and SSI drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.

We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.

This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.

SSI files are digital models of Baier Equipment formatted for SSI™s popular ShipConstructor CAD/CAM software (XML files are compatible with ShipConstructor version 2016 R2 and greater). For a complete list of all available Baier Products formatted for SSI ShipConstructor go to our Download Library. For more information about SSI ShipConstructor Contact your local SSI Reseller to discuss the most cost-effective solution for you. Learn more.
