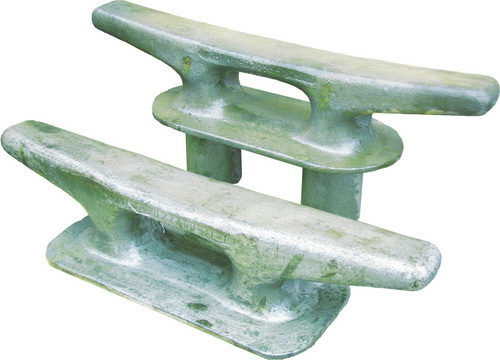

Kevel Chocks Thru Deck | 42″ & 48″ | Cast Steel

Kevel Chocks Thru Deck | 42″ & 48″ | Cast Steel

SKU: Kevel Chock_Thru Deck_BAIER. Categories: , .
Description
Universal Thru Deck Kevel Chocks.
ASTM A27-70-36 Cast Steel

Model Number Description Downloads Part Number Weight Total Lbs (Kgs.)

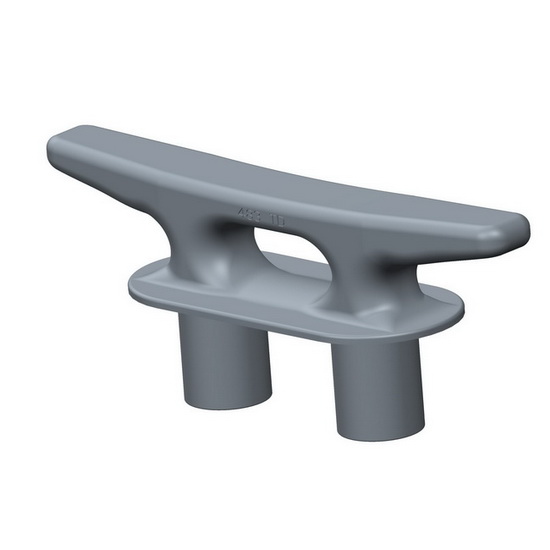

UMC-483TD 42″ Thru Deck Kevel Chock Cutout & CAD Files:
PDFDXF
01091-301A 220 (100)
UMC-484TD 48″ Thru Deck Kevel Chock Cutout & CAD Files:
PDFDXF
01102-301A 380 (172)

Disclaimer of Liability: PDF Cutout drawings, Autocad® Cutout drawings and SSI drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.

We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.

This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.

SSI files are digital models of Baier Equipment formatted for SSI™s popular ShipConstructor CAD/CAM software (XML files are compatible with ShipConstructor version 2016 R2 and greater). For a complete list of all available Baier Products formatted for SSI ShipConstructor go to our Download Library. For more information about SSI ShipConstructor Contact your local SSI Reseller to discuss the most cost-effective solution for you. Learn more.
